Modular Machine Guarding

EasyGuard

Handiness

NEW SYSTEM - AVAILABLE FROM JAN 2024 i

The Simple and Ergonomic Machine Guarding System.

EasyGuard is our Machine Guarding System that provides simplicity and effectiveness. Featuring two post options, a newly designed baseplate and an efficient Clamp assembly, EasyGuard stands out as an ideal Solution for a wide range of industrial applications.

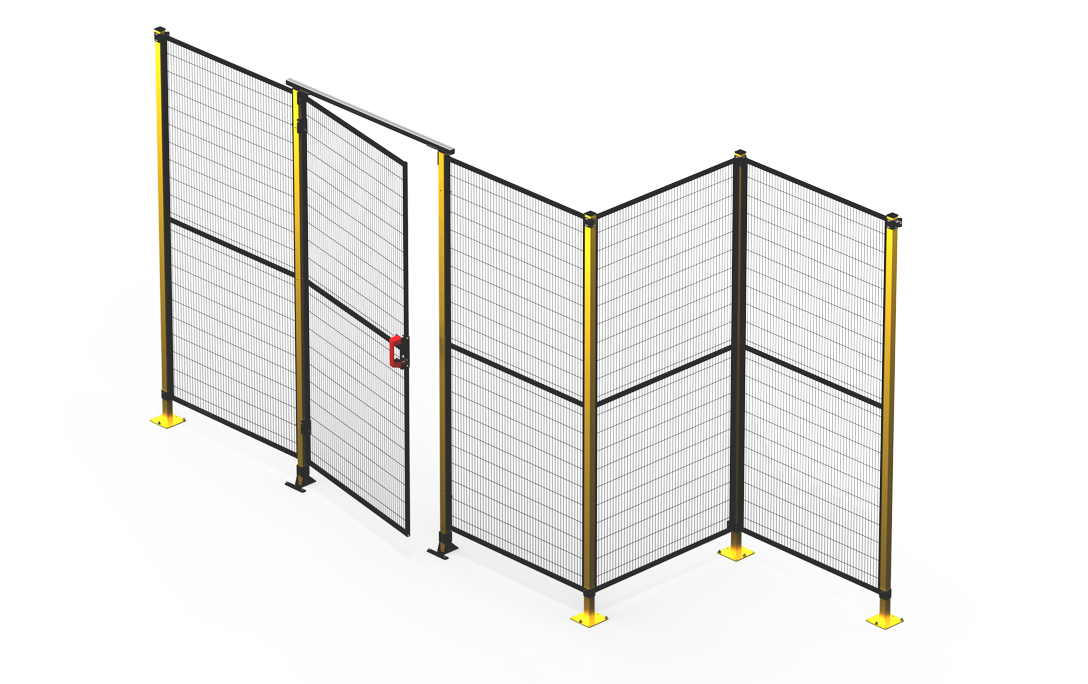

  • Miniatura delle Recinzioni Modulari per macchinari Satech EasyGuard

Practical

Featuring new baseplates with 3 anchoring points and an improved Clamp design, installation time is cut by up to 25%.

Versatile

Offering choices of 40 mm or 60 mm posts, EasyGuard can be complemented by our extensive selection of Accessories and Doors.

Regulation-Compliant

EasyGuard complies with international Standards (EN ISO 14120, ANSI/RIA R15.06) and with the requirements set by OSHA (the Occupational Safety and Health Administration).

EasyGuard Machine Guarding System

Key System Features

200
300
700
800
1000
1200
1500 mm
GROUND CLEARANCE 140 mm
2220
MAX HEIGHT 2620 mm
EasyGuard Machine Guarding System

Panels

FRAME
mm
20
MESH (mm)
20 x 100 x 3
MESH SLOT (mm)
17 x 97
WIDTHS (mm)
200300700800100012001500
7 STANDARD WIDTHS, INFINITE POSSIBILITIES

The combination of our 7 standard panels joined together allows to create all the intermediate widths in 100 mm increments.

HEIGHTS (mm)
20802480

Posts

SECTION
mm
40
EasyGuard 40
SECTION
mm
60
EasyGuard 60
BASEPLATES
60 mm post: 140 x 140 x 5, welded 40 mm post: to be assembled (adjustable)
HEIGHTS (mm)
22402640

Colors

RAL COLORS
RAL 9005 RAL 1021 CustomGuard Colors
COATING
Powder (for indoor use only)

Our Modular Framed Panel

Safe, Practical and Resistant

2080
MAX HEIGHT 2480 mm
Pannello Satech con telaio: apertura della maglia rete di 17x97 mm
Our Modular Framed Panel
  • Simple Handling
  • Ready To Use
  • Safe And Resistant
  • Anti-Climb Design
  • Visibility
  • Less distance, more space saved
  • Simple Handling
    Sturdy and Lightweight

    Featuring a design that's both strong and light in weight, the Satech framed panel enables effortless single-person maneuverability.

  • Ready To Use
    Plug and Play Versatility

    Our frame is designed for convenience, coming pre-drilled for easy assembly with Nuts and Bolts. This feature streamlines the installation of Brackets, Locks, and Accessories, ensuring a hassle-free setup.

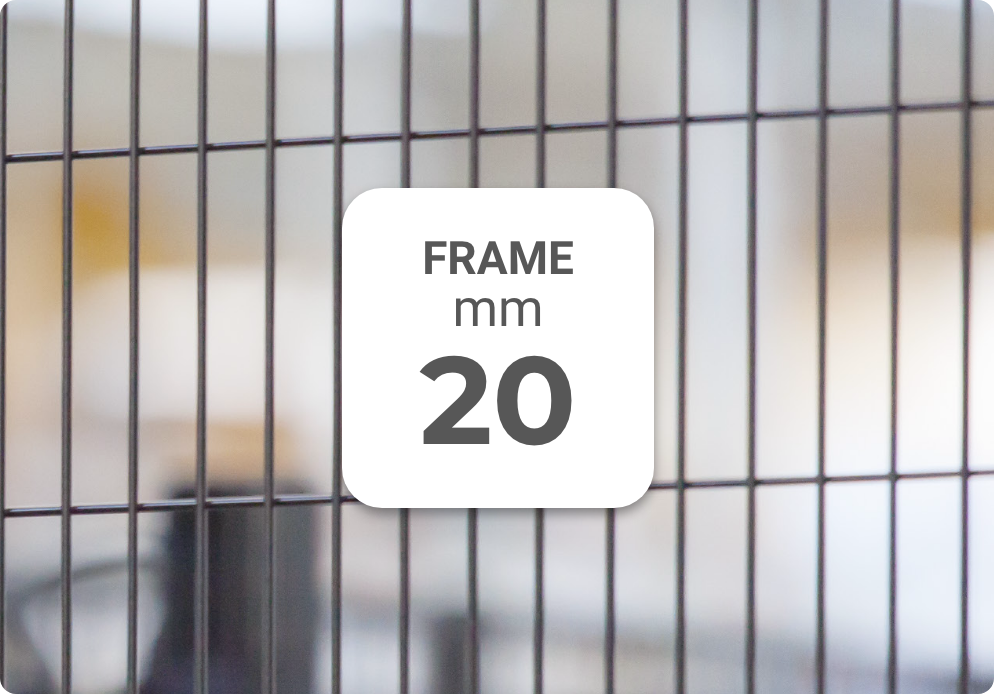

  • Safe And Resistant
    Rigidity and Anti-Resonance

    The 20 mm square section tubes and 3 mm wire mesh make the Satech panel rigid and resistant, while welds at wires intersection prevent the risk of resonance.

  • Anti-Climb Design
    EN ISO 14120-5.18

    Our advanced Machine Guard features horizontal wires welded on the interior, effectively deterring climbing attempts.

  • Visibility
    EN ISO 14120-5.9

    The vertical mesh design provides excellent visibility of machinery.

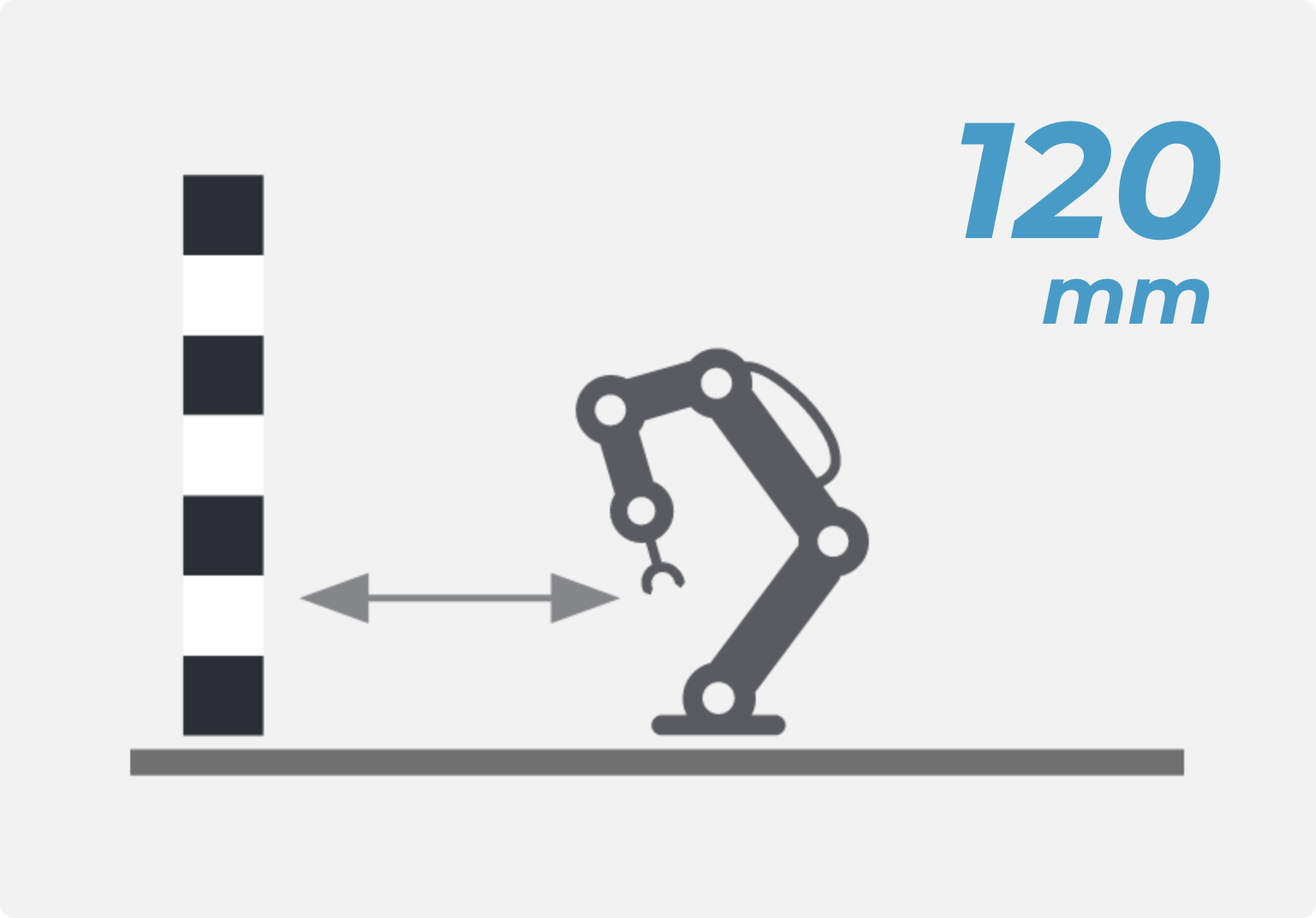

  • Less distance, more space saved
    EN ISO 13857

    The 17 x 97 mm mesh slot enables the installation of the Guard up to just 120 mm from hazard (as per EN ISO 13857), effectively minimizing the space required for the safety perimeter.

    New "Mix & Match" Posts

    EasyGuard ensures seamless interchangeability throughout the layout. Posts come in sections of 40 mm and 60 mm, so as to enhance durability against potential external impacts.

    New

    New

    A Brand New Design for Baseplates

    The innovative 3-point anchoring baseplate offers optimal ground stability, decreases installation time and allows adjustments for uneven floor surfaces. A new standard feature across all painted-steel Satech Systems.

    New

    Two New Baseplates

    • Stability and resistance
    • Optimized ground anchoring
    • Adjustable tilting and height

                Two New Baseplates

    Effortless Assembly and Installation

    The brand new Clamp, featuring Captive Retained Screws (compliant with the 2006/42/EC Machinery Directive) alongside three anchoring points for posts, reduces the Perimeter Guard installation time and makes assemblying EasyGuard very easy to carry out.

    New

    Unparalled Simplicity and Versatility

    Combined together, the brand new EasyGuard features enhance the overall reliability and adaptability of this Machine Guarding System.

    EasyGuard in a Nutshell

    Compare It With Our Other Modular Systems

    EasyGuard
    EasyGuard Handiness
    ImpactGuard
    ImpactGuard Robustness
    FastGuard
    FastGuard Speed
    Machine Guard -
    Standard heights (mm)
    2220, 2620 2220, 2620 2220
    Frame section (mm) 20 20 20
    Post section (mm) 40 / 60 40 / 60 -
    Captive Assembly System Quick Clamp Screws Upper Connections +
    Special Baseplates
    Price range $$ / $$$ $$ / $$$ $
    Speed of assembly
    Mesh (mm) 20 x 100 x 3 20 x 100 x 3 20 x 100 x 3
    Tested resistance
    to Impact (max)
    250 J 2200 J 390 J
    Min. Distance
    from hazard (mm)
    120
    (EN ISO 13857)
    120
    (EN ISO 13857)
    120
    (EN ISO 13857)
    Non-mesh panel options(FullSteel, transparent sheet, mixed) -

    EasyGuard - System Video

    Learn more about the assembly of our EasyGuard Perimeter Guarding System in this video.

    EasyGuard - Assembly Instructions

    Download

    EasyGuard's 3D Models Are Available For Download on TraceParts!

    COMPLETE LIBRARY

    Products and Complements

    Enhance EasyGuard's Functionality by Choosing Among Our Premium Doors, Panels, Locks, and Accessories.

    • Protezioni Perimetrali Satech - Protezione Macchine

    Standard Doors

    A versatile range of doors enabling access to machinery for personnel, pallet trucks, forklifts and overhead cranes.

    Browse our doors
    • Protezioni Perimetrali Satech - Pannelli Modulari

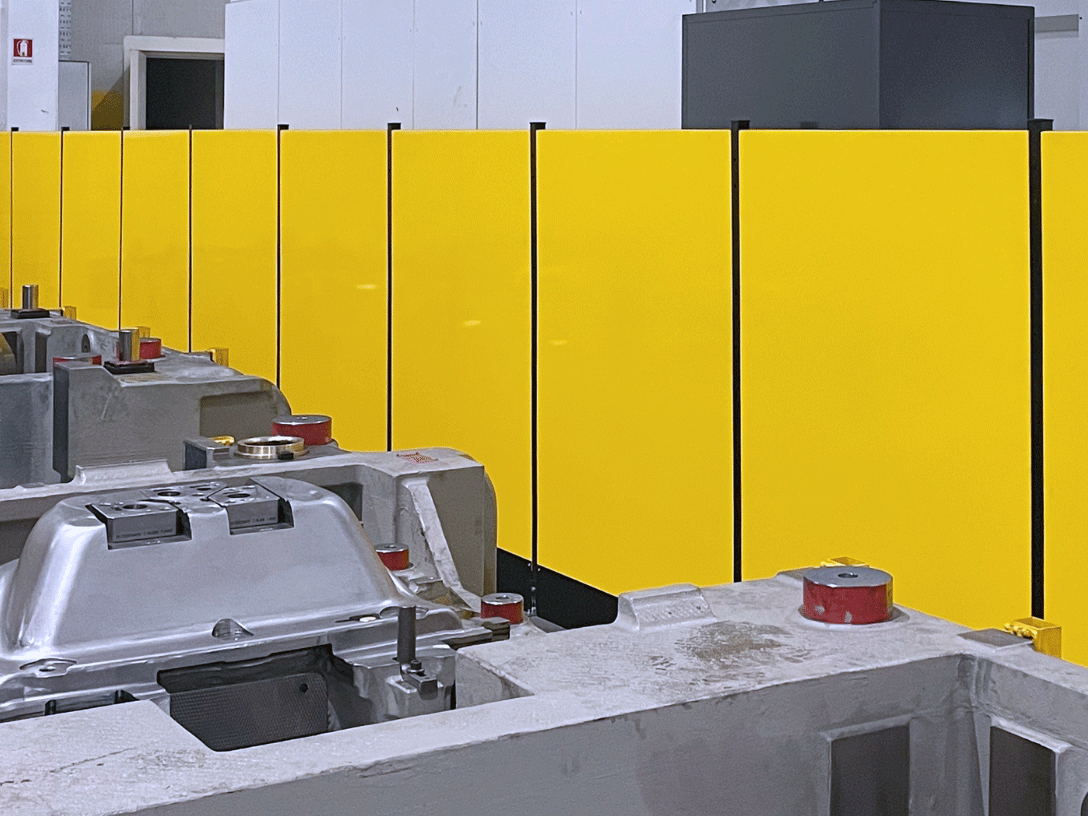

    Modular Panels

    A variety of panel options beyond traditional mesh, offering diverse material choices for specific applications.

    Browse our panels
    • Satech Protezioni Perimetrali - Offriamo una gamma di chiusure adatte a tutti i Livelli di Prestazione richiesti nei sistemi di sicurezza.

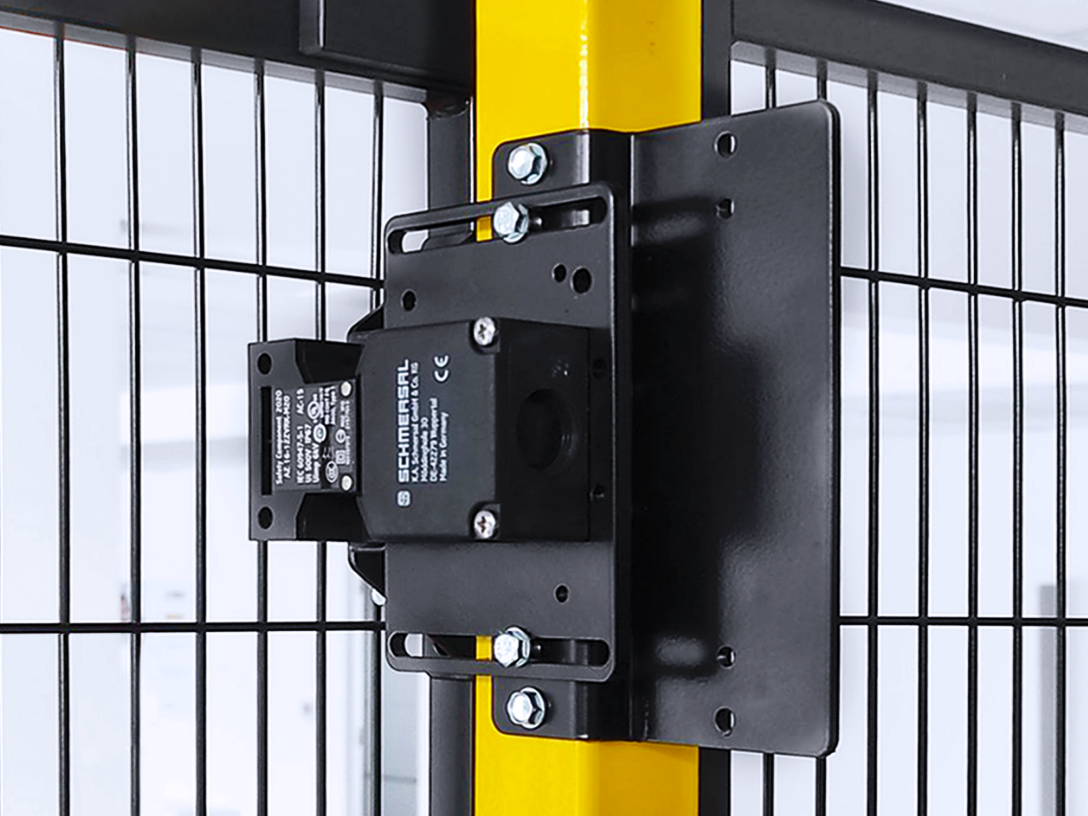

    Locking Systems

    An array of locking options tailored to meet the diverse Performance Levels necessary for optimal security in industrial environments.

    Browse our locking systems
    • Protezioni Perimetrali Satech - Accessori e Staffe per completare la vostra sicurezza perimetrale macchine

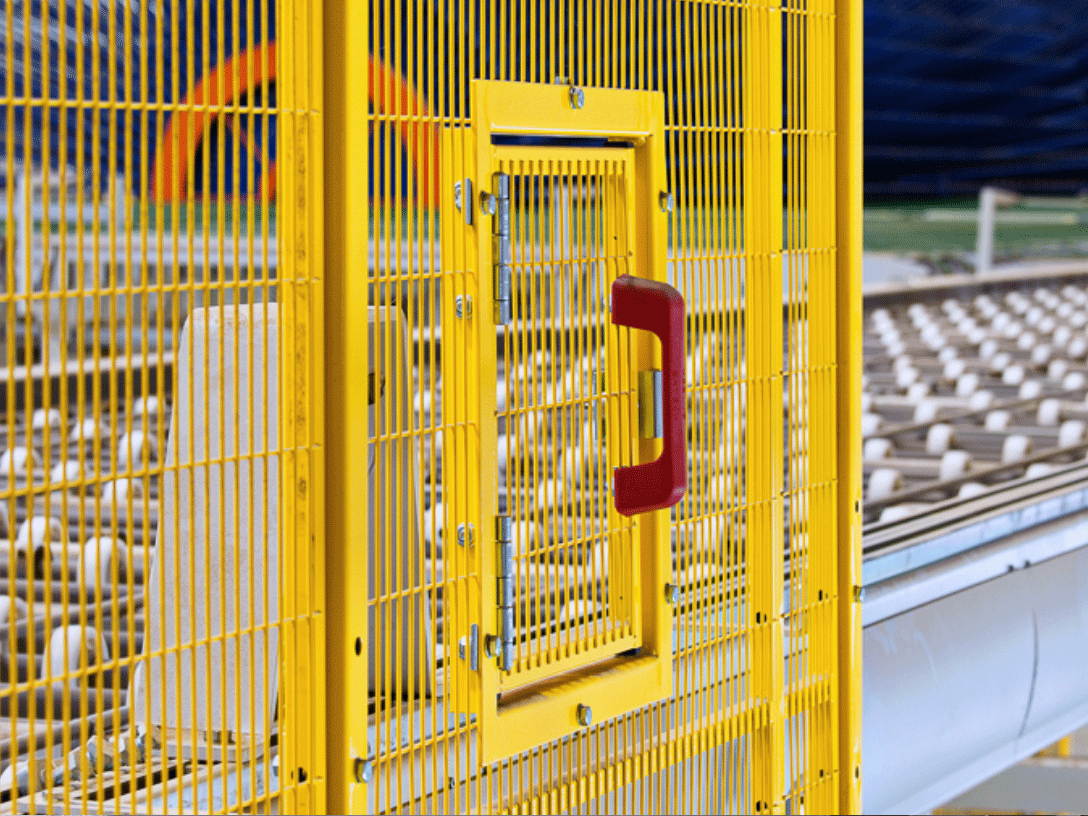

    Accessories and Brackets
