BASIC Series

OSHA-Compliant Machine Guards

Our classic Machine Guard for most industries.

POSTS SECTION
1.56’’
40 mm
FRAME SECTION
0.78’’
20 mm

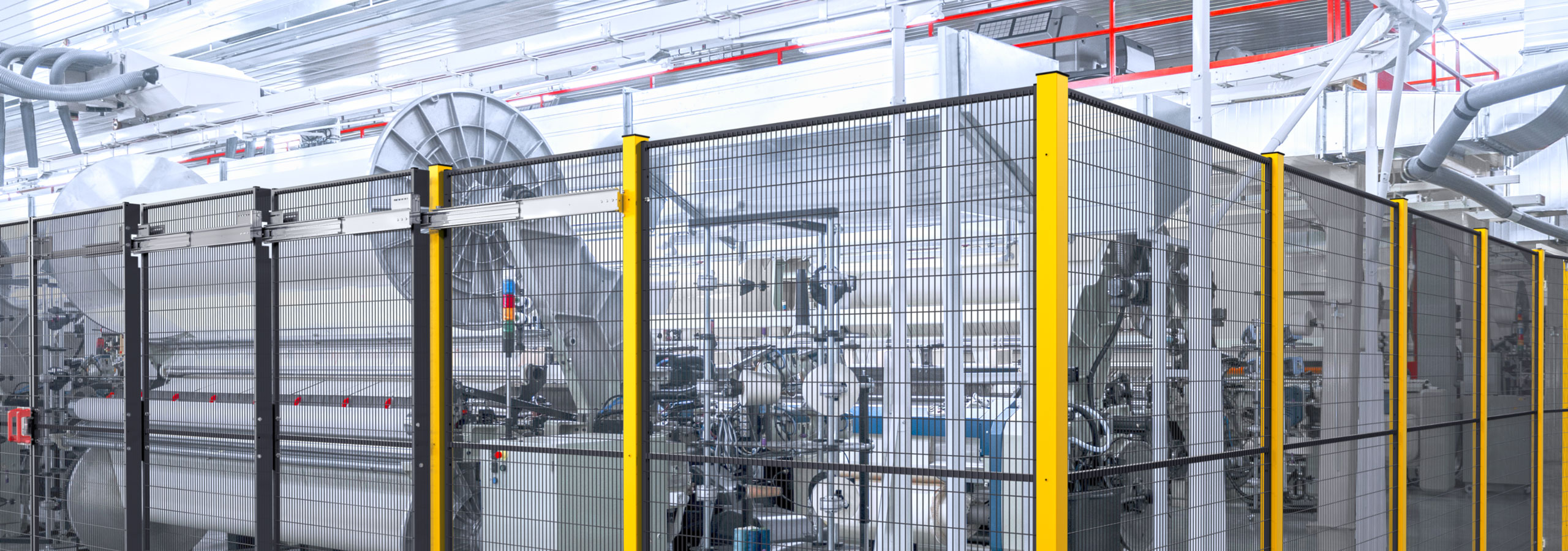

Satech Machine Guarding - BASIC Series Perimeter

Versatile

Lightweight and handy, our best-selling OSHA-Compliant Machine Guards feature two different assembly options. Satech BASIC Series is the ideal safeguarding solution for many industrial applications.

Adjustable

Easily adaptable and customizable OSHA-Compliant Machine Guards. It fulfills any machinery need thanks to a wide range of accessories.

Regulation-Compliant

BASIC complies with international Standards (EN ISO 14120, ANSI/RIA R15.06) and with the requirements set by OSHA (the Occupational Safety and Health Administration).

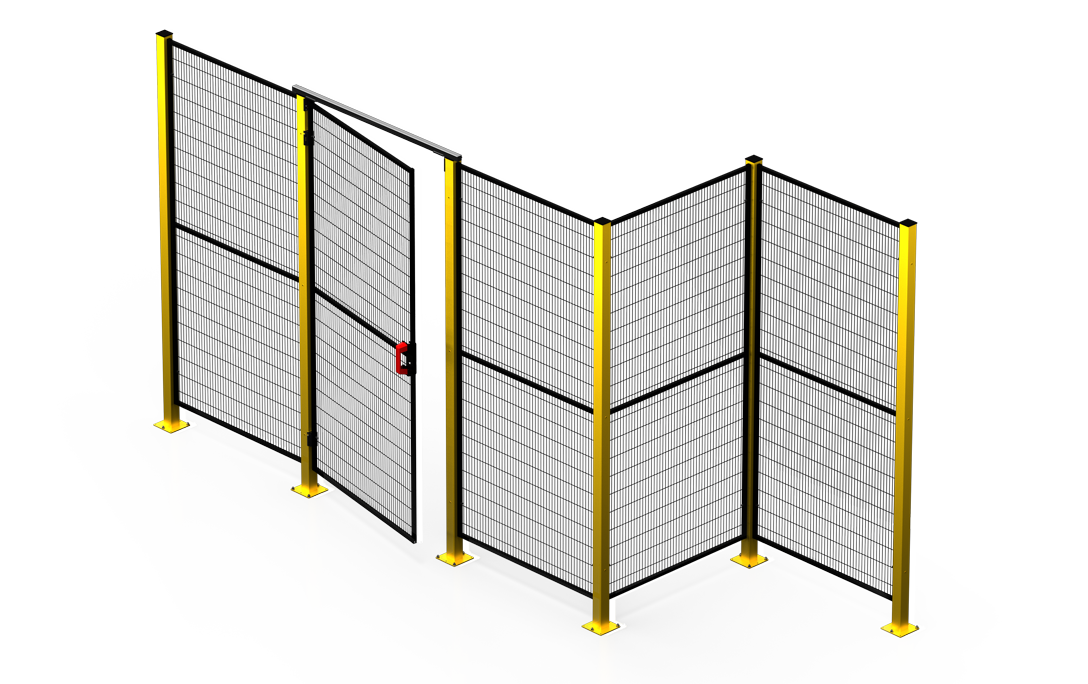

BASIC Modular Safety Fence

Key Product Features

DISPLAY VALUES IN
inches
mm
7.87’’
11.81’’
27.56’’
31.49’’
39.37’’
47.24’’
MAX WIDTH
59’’
103.14’’
MAX HEIGHT
80.31’’
GROUND
CLEARANCE
5.5’’
All widths by 3.93 inches
(100 mm) increments available
MAX IMPACT
RESISTANCE
1608 J

Assembly Options

While nuts & bolts ensure more panel strength (up to 1608 J), our patented Quick Clamp solution provides quicker and easier assembly.

POSTS SECTION
1.57’’

Adjustable Posts

Our classic solution is designed to withstand critical conditions. BASIC System posts are available with a bolt on adjustable baseplate.

The Satech Framed Mesh Panel

Designed To Be Smart

Versatile To The Fullest

Our panel can be fit to size on site using our panel Cut Kit to fit any machinery layout.

Lightweight, Yet Robust

The Satech framed panel can be easily handled by one person. The welds positioned along the entire frame and at wires intersections make it rigid and resistant.

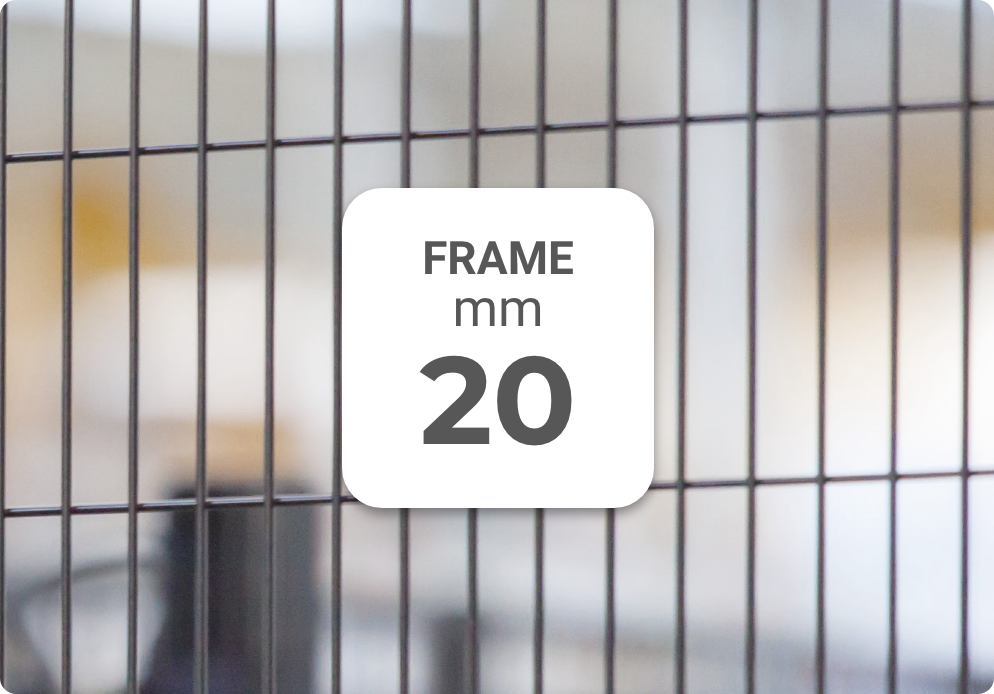

FRAME SECTION
0.78’’
20 mm
Satech Machine Guards - Our Framed Mesh Panel

Hard To Climb, Easy To See Through

While horizontal wires are welded inside the guard to prevent climbing (as per EN ISO 14120-5.18), the vertical shape of the mesh slot allows optimal machinery visibility (EN ISO 14120-5.9).

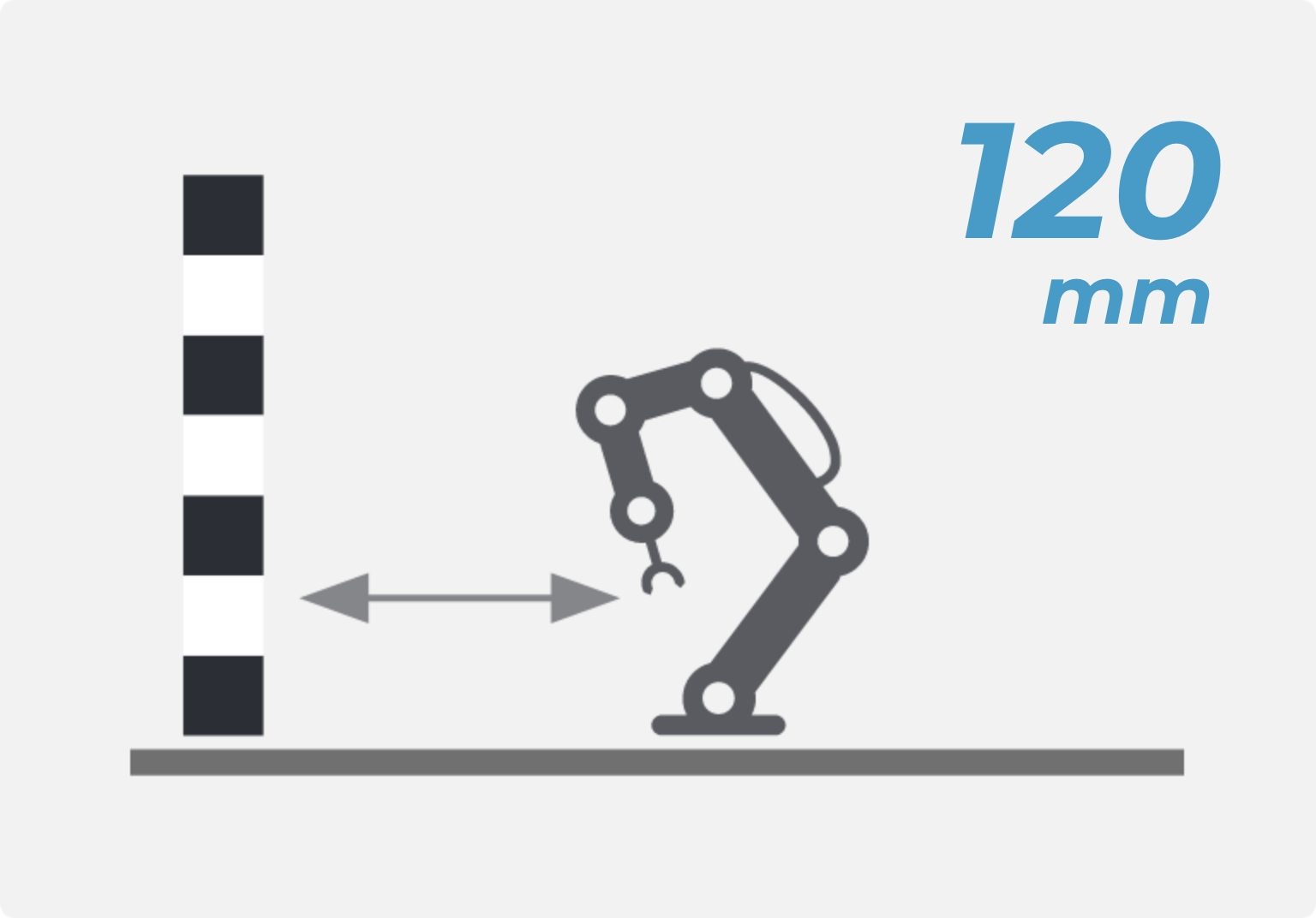

Saves You Valuable Floor Space

The innovative .75” (19 mm) mesh opening allows you to install within 4.72” (120 mm) of any hazard, thus saving floor space.

DISTANCE FROM HAZARD
4.72’’
120 mm

Panel Options

The Ideal Solution If You Need More Personalization

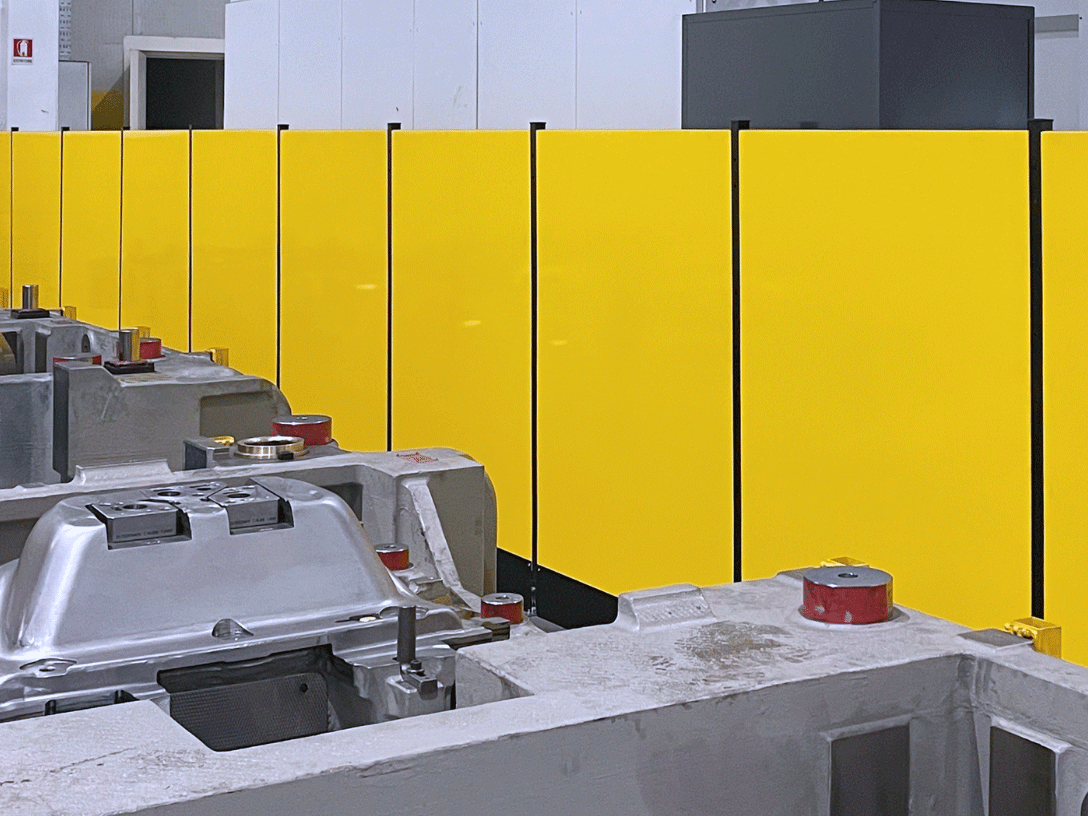

Satech Machine Guards Panel Options - Sheet Metal
Satech Machine Guards Panel Options - Sheet Metal with Viewing Port
MATERIAL

Metal sheet

THICKNESS

0.047’’

1.2 mm

BASIC in a nutshell

Compare it with our other Modular Systems

DISPLAY VALUES IN
inches
mm

BASIC Series

STRONG Series

FastGuard 20

Frame Section
0.78’’
0.78’’
0.78’’
Posts Section
1.57’’
2.36’’
No posts
Assembly System
Patented Quick Clamp or Nuts and Bolts
Patented Quick Clamp or Nuts and Bolts
Upper Connection + Special Baseplates
Standard Heights
80.31’’, 103.14’’
80.31’’, 103.14’’
80.31’’, 103.14’’
Custom Heights
Available on demand
Available on demand
Available on demand
Mesh slot size
0.86’’, 3.93’’, 0.11’’
0.86’’, 3.93’’, 0.11’’
0.86’’, 3.93’’, 0.11’’
Standard Colors
Black Panels
Yellow Posts
Black Panels
Yellow Posts
Black Panels
Black Posts
Special Colors
Available on demand
Available on demand
Available on demand
Tested Resistance to Impact
Max 1608 J *
Max 1608 J *
115 J
Min. Distance from Hazard
4.72’’
4.72’’
4.72’’
*When assembled with nuts and bolts
*When assembled with nuts and bolts
*Standard value required by EN ISO-ANSI/RIA

Interested in BASIC?

Get in touch with our dealers in a few clicks.

Satech BASIC Series –
Perimeter Assembly Video

Discover how BASIC can be assembled in a few and easy steps through this informational video.

SATECH CATALOG

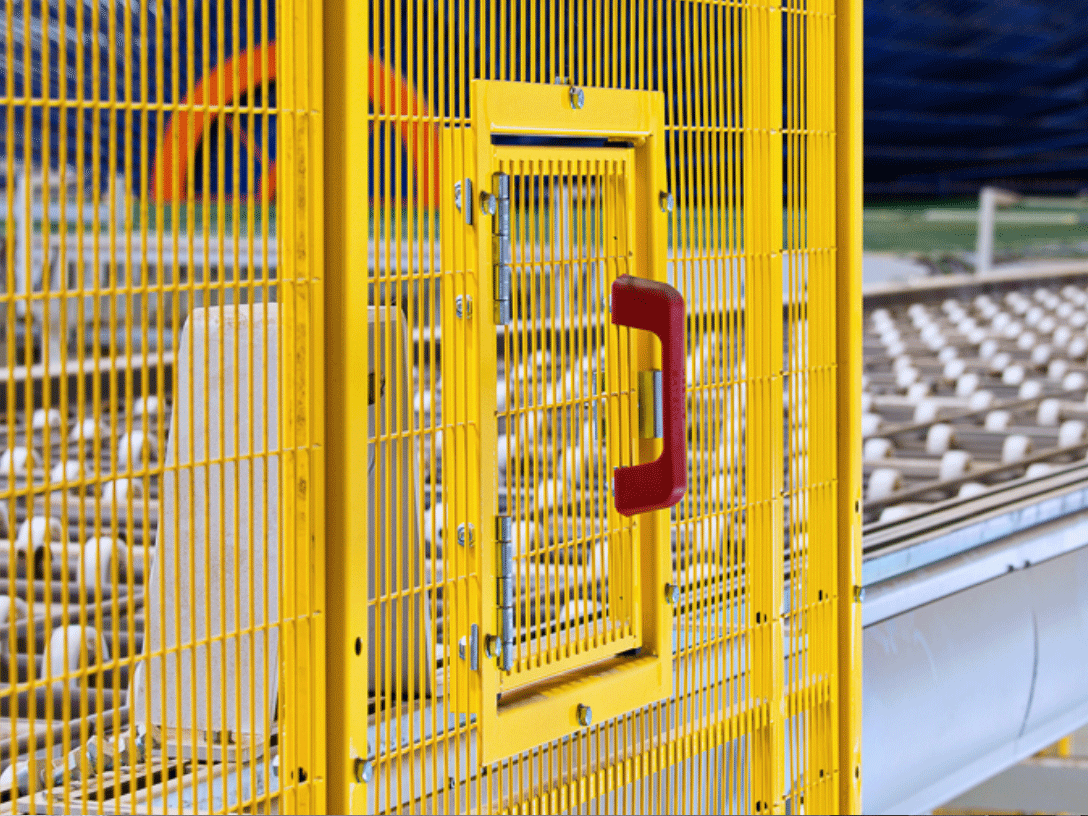

Doors, Locks, Accessories

Fully Compatible With All Of Our Systems

Hinged Doors

Standard single- or double-leaf hinged door. The movement is achieved by means of two hinges and a door stop.

VERSIONS AVAILABLE
Single & Double
OPENINGS AVAILABLE
27,56’’
to
118,11’’
Satech Machine Guards - Hinged Doors - Opening generated by hinges and door stop

Mechanical Locks:
Simplicity And Functionality

Padlockable bolt locks, key locks with fixed knob or handle, panic lock with push-pad or emergency panic bar, Satech mechanical locks are made with superior quality components and integrate perfectly with our panels.

Guard monitoring and controls for your safety fence

Satech partners with market leader Schmersal to provide any possible solution for your needs. Today the Schmersal product portfolio contains over 25,000 products, such as keyed interlocks, solenoid locks, electronic safety switches and sensors, coded magnet sensors, safety hinge switches, safety light curtains, safety rated limit switches, safety edges and mats, and a wide assortment of safety controllers.

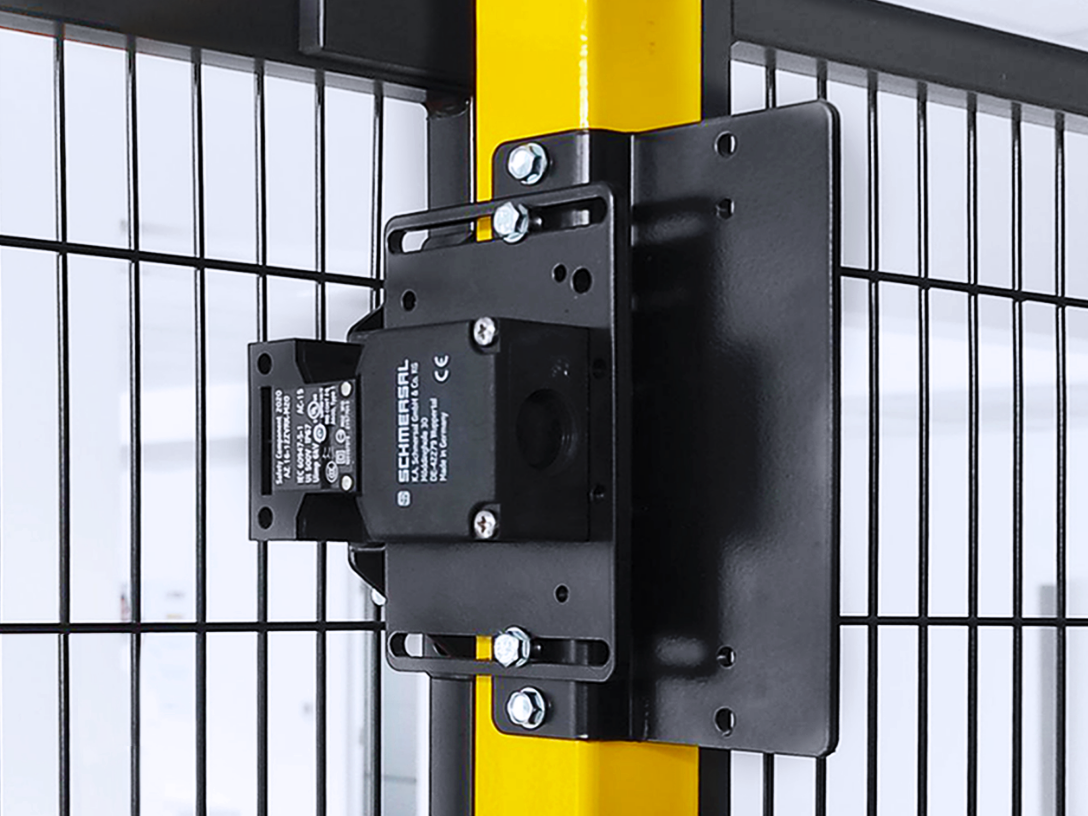

Satech Machine Guards Locks - Schmersal AZM 200
Schmersal Logo

Safety Switches Dedicated brackets

Safety Switches mounting brackets specific for all brands and types of locks.
